Application: Automatic Solar Cell String Inspection
1. Matched with tabber stringer, and can achieve synchronous inspection.
2. Easy to operate, without additional manpower cost.
3. Automatically detect the appearance defects of cells, including offset, edge defects, corner defects, dirt, scratches, spacing, etc.
4. Use 10 million high-definition industrial cameras, and automatically save NG pictures

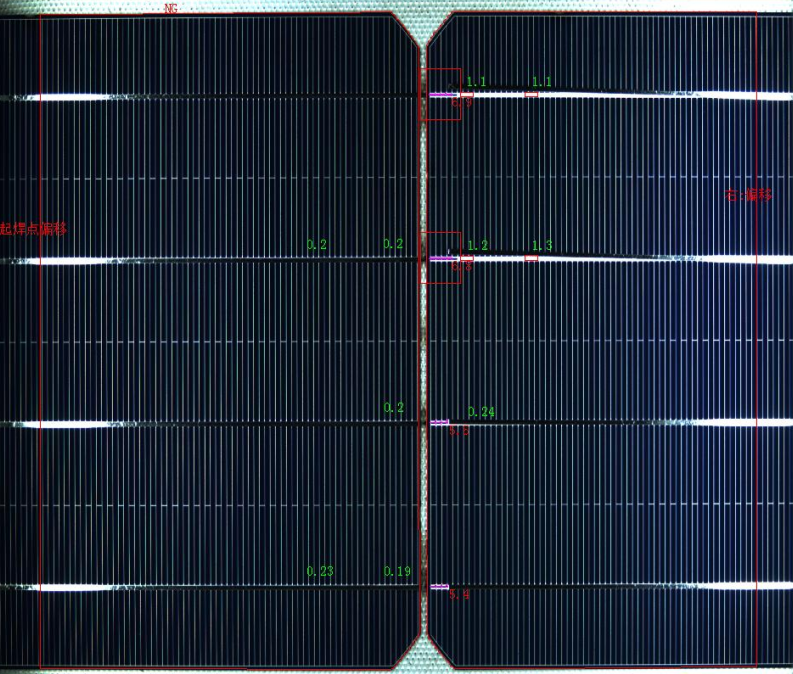

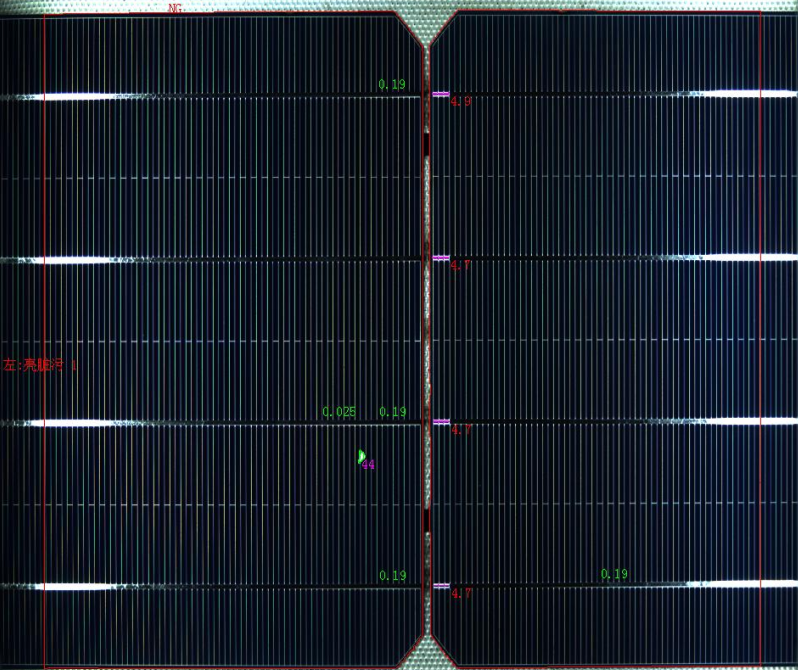

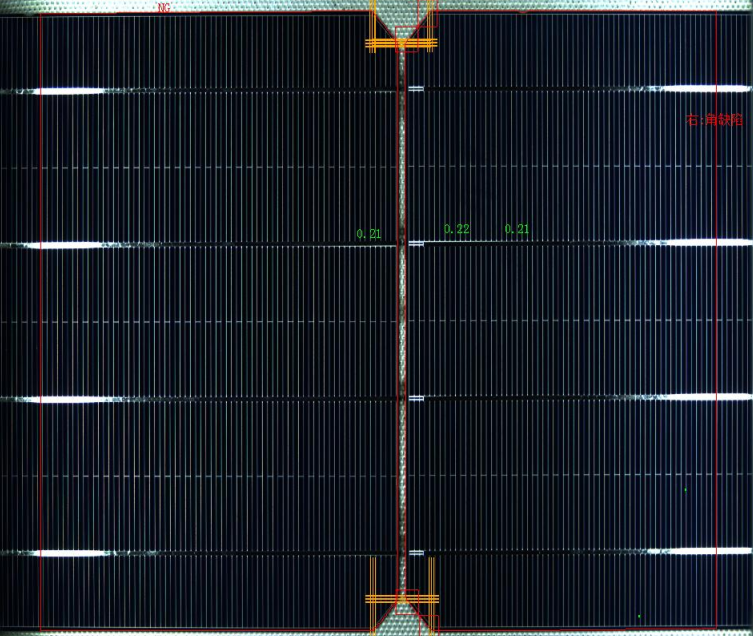

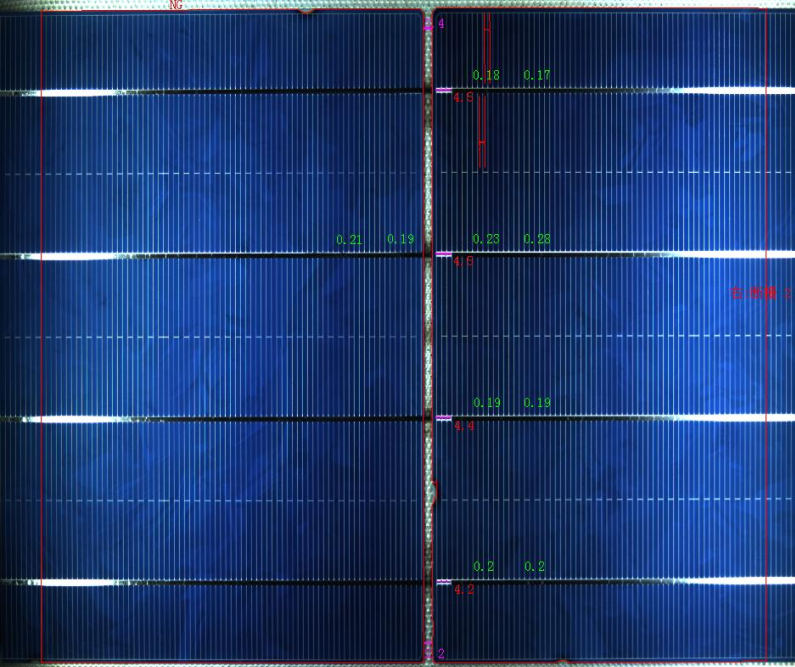

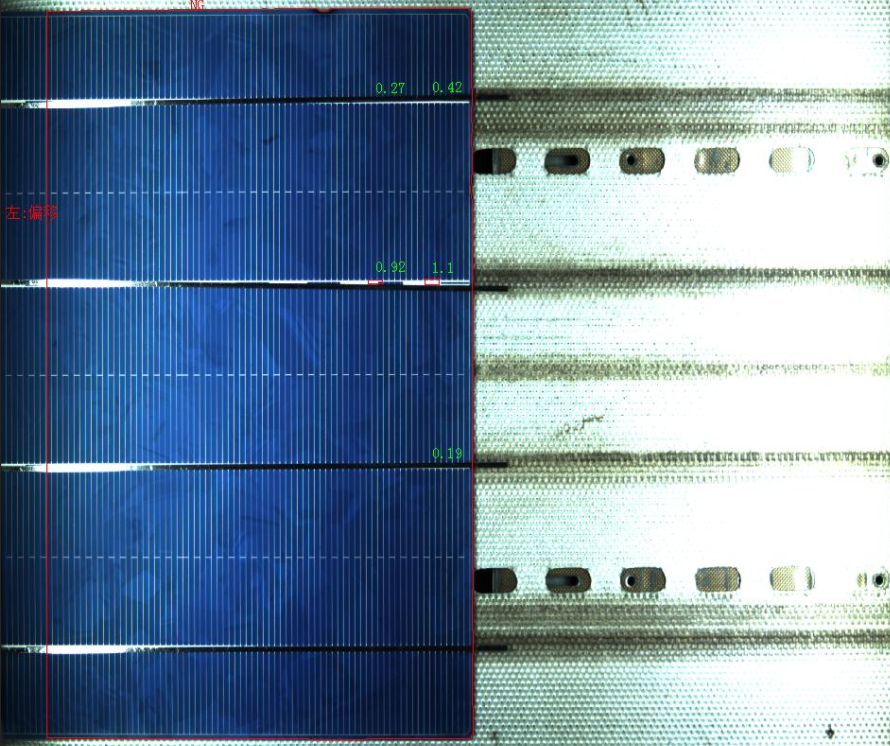

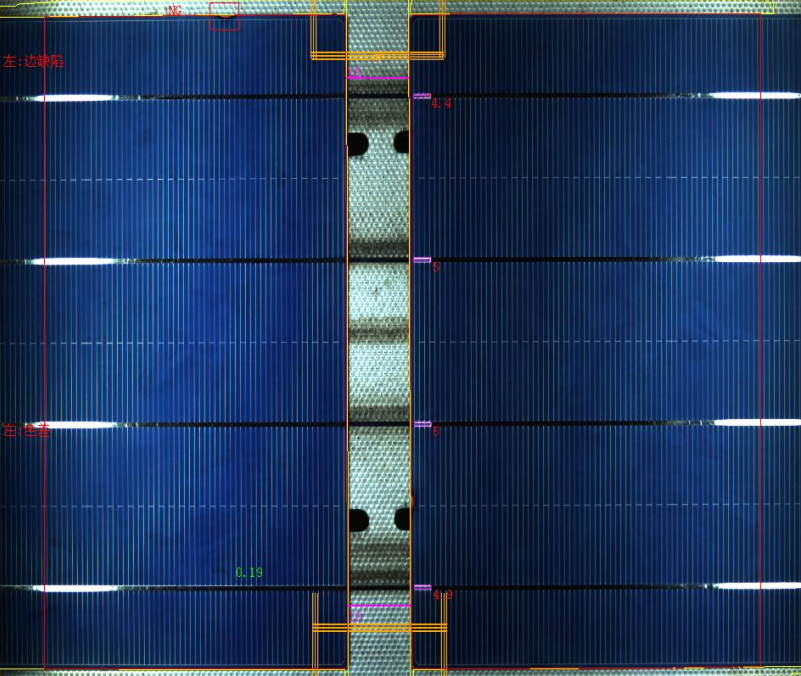

5. Mark and display defects on the image interface in real time
Functions:
1. Color difference: mainly identify color of the cell
2. Edge inspection: identify and detect the edge breakage exceeding a certain area or depth
3. Angle inspection: identify and detect angle breakage

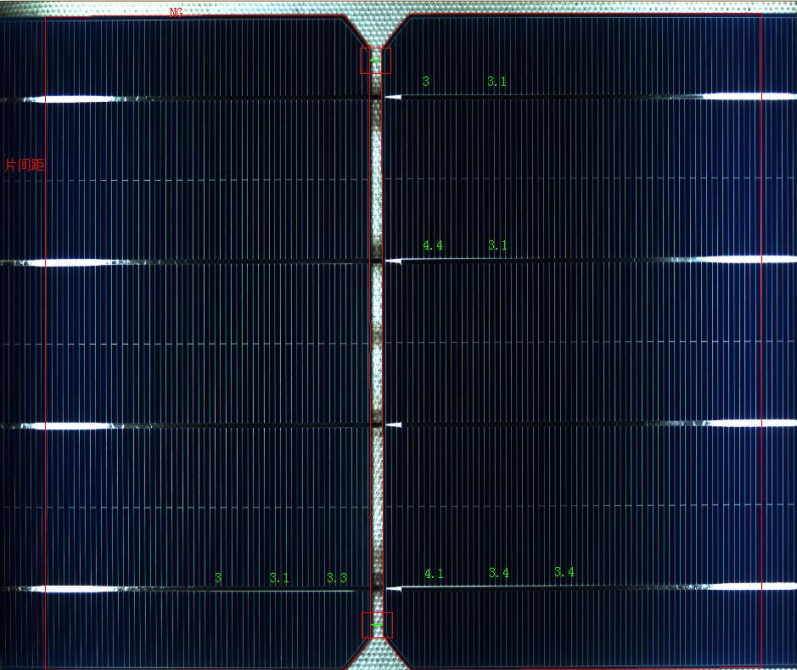

4. Spacing: quantify the distance between the two cells
5. Straightness: detect position deviations of all the cells of one string
6. Maximum offset: detect position deviations of welding belt
7. Solder joints: detect position deviations of the first solder joint
8. Scale breakage: detect scale breakage
9. Dirt: detect dirt on the cell
10. Scratch: detect scratch on the cell
