Application: Phone Case Size Measurement Solution

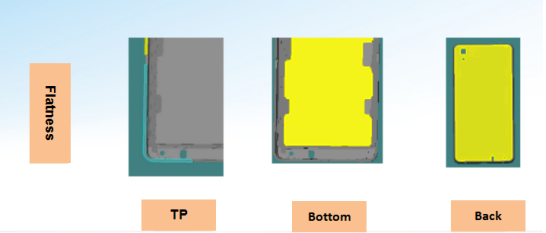

1. Flatness measurement: TP, bottom, back, etc.

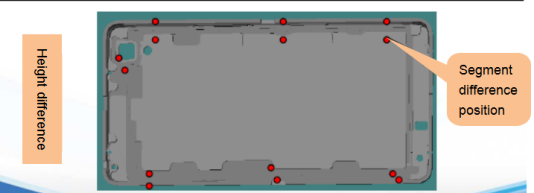

2. Height measurement:
a. Distance between top and TP
b. Distance between top and bottom
c. Points needed to be measured
3. Thickness measurement
CCD measurement parameters:

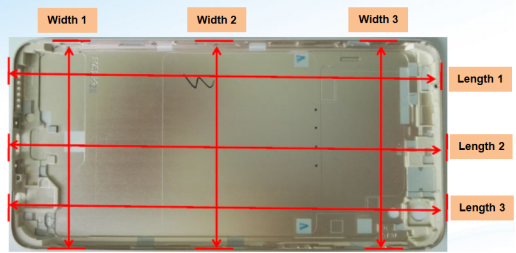

1. Internal and external length and width measurement
2. Camera and flash bore measurement
3. Side bore measurement, like headphone bore, volume bore, key bore, etc.
4. Measurement of back antenna slot length and width
5. Logo gap mismatch measurement
FRD provide professional phone size measurement solutions:
1. FVL video measuring machine special for phone case measurement is automatic measurement system of structural parts, like metal phone case, battery cover, etc. capable of automatic measurement, CNC displacement, automatic learning, and bulk measurements
2. Standard measurements: flatness, bottom thickness, panel height
3. Optional stylus to measure internal and external length and width, bore size and position, height difference and R arc angle
4. Versatility: adjustable cylinder sensors ensure the testing versatility
5. Convenience: one-button measurements; adjustable speed and simple operation
6. FRIMS software designed for video measuring machine: concise interface, intelligent extraction, and include SPC module; improve management efficiency
