Application: Automobile Lamps Measurement
|
No. |
Workpiece |
Industry |
Recommendation |
Software |
Probe |
|
C005 |
Automobile lamp |
Automotive |
FRD8106 |
FRD-DMIS |
PH10T+TP200 |

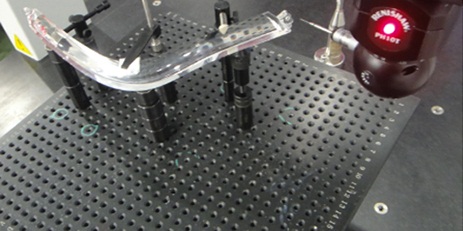

Product Features:
If the clamping is table and reliable, measured workpiece will not be moved or deformed due to measurement force influence. All the workpieces should be measured at one time, and if the workpiece needs to be turned, the second measurement datum should be consistent with the first one. Take probe rotation range into consideration, for the convenience of specially positioned bores measurement. Length of stylus is mainly determined by the measurement position where curvature changes greatly. Type and length of extension bars are determined by the position and depth of measurement points. Stylus selection: normal ball stylus should be selected in accordance with the diameter of smallest bore.

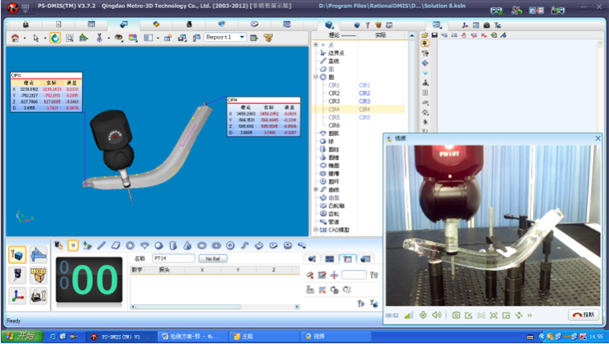

Product Measurement Process:

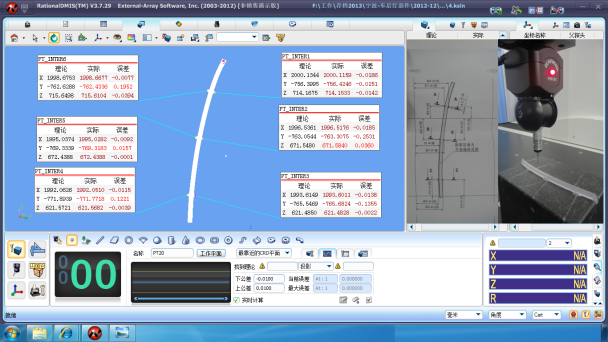

Report Output:
