Application: Car Dashboard Appearance Detection System
(Product)
Requirements:
Lamp inspection → Product part number printing error → Dial pattern impurity → Overlap, oil → Light leak → White spot → Color brightness uniformity → Dial impurity → Black spot → Bar code deformity → Symbol inspection
(Surface oil pollution detection results)
(Product)

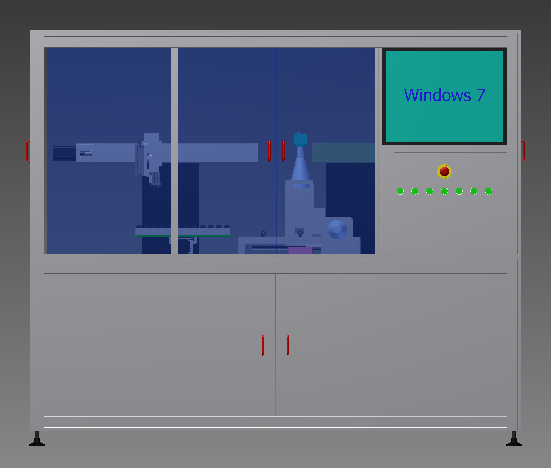

(Device diagram)
Application: Spark Plug Size Automatic Detection System
(Product)
Requirements:
→ Maximum diameter of the screw head: 0.250 ± 0.002 (inch)
→ Minimum diameter of the screw head: 0.214 ± 0.004 (inch)
→ Screw head bending ≤ 3 °
→ Screw head and ceramic body center offset value <0.0242 (inch)
→ Clearance between the screw head and ceramic body <0.01 (inch)
→ Measurements are done by two steps. After the first step, the workpiece is rotated by 90° and then the second step. If the first step failed, no second measurement will be done.
(Software screenshot)
System Features:
→ On-line detection. The system uses turntable structure. Detection speed: 1.5S for one
→ Ethernet communication for PC and In-sight
→ No manual participation in the camera calibration process
→ Real-time display of measurement image and data
→Measurement results statistics; automatic calculation of CPK; test results reports are automatically stored into the database
