Products
  • Home >Products >Smart Manufacturing System >AGV

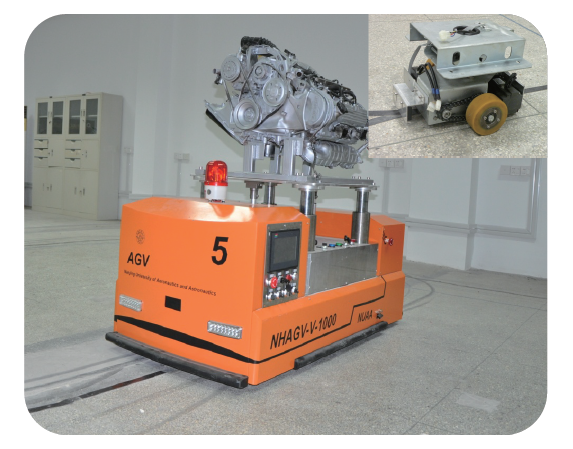

    • Magnetic guided AGV is based on the magnetic guiding technology. The cooperation of magnetic guiding sensor and magnetic tape realizes the automatic trackless guiding. Being flexible, reliable, economic and good-looking, it is widely applied to transportation of various materials.

    1. Size: L1500*W800*H600 (mm) (customized)

    2. Navigation: magnetic guided, machine vision guided (customizable)

    3. Walking direction: all directions

    4. Communication: wireless communication, ZigBee (optional)

    5. Drive mode: integrated module of guide and drive

    6. Drive power: DC48V

    7. Lifting method: automatic lifting

    8. Max lifting height: 50mm (customizable)

    9. Max load: 2000KG (customizable)

    10. Walking speed: 0-60M/min

    11. Walking accuracy: 15mm

    12. Stop accuracy: 5mm (with the second positioning)

    13. Working mode: 8 hours

    14. Charging mode: non-contact power supply, charging cabinet (optional)

    15. Power: lithium battery

    16. Environment: indoor temperature: 0-40℃; relative humidity: 40%-80%

    17. Safety protection: touch pressure sensor, laser obstacle avoidance sensor

    18. Design lifetime: >10 years

    Magnetic guided AGV working principle:
    Magnetic navigation sensor is put directly above the magnetic tape of AGV. If AGV goes the path as being guided, as the magnetic guide sensor is directly above the magnetic tape, path deviation sensor is detected to be zero, so controller will not rectify and AGV goes in the original path. If AGV goes out of the path as being guided, as the middle point of magnetic guide sensor detects less strong magnetic induction, controller will calculate the AGV route deviation according to deviation data, rectify the deviation in time, and dynamically adjust the movement direction of AGV, to make AGV goes rapidly towards or go back to the original path.

    Application Field:
    Manufacturing: automotive, electronics and tobacco industry, and material distribution, assembly and processing in aircraft plant.
    Services: used as transport robots in the port terminals, postal departments, large office buildings, hospitals, hotels, etc.
